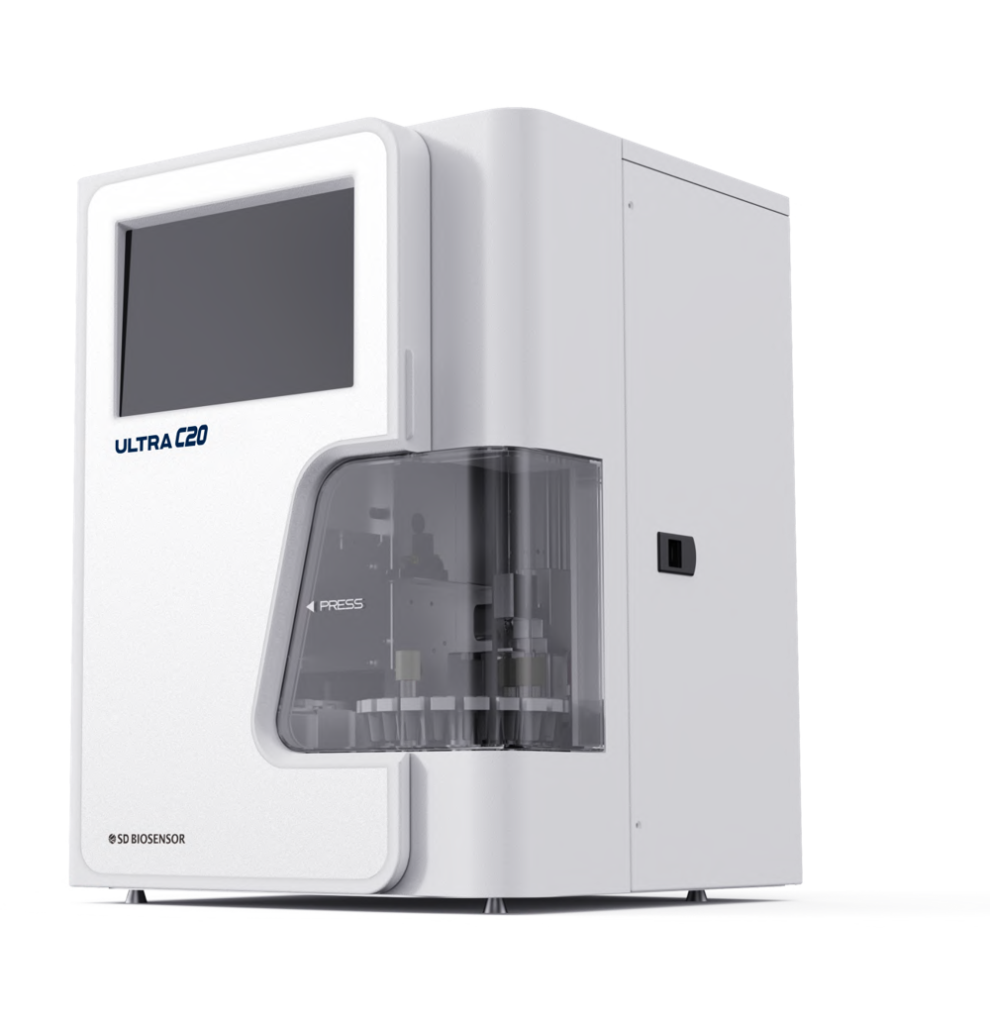

SD Biosensor ULTRA C20 HPLC analyzer
A fully automated, walk-away HPLC analyzer for HbA1c and haemoglobin variants, with three test modes on one column and reagent set. Milap International supplies, installs and services the ULTRA C20 as an authorised SD Biosensor partner.
- 90 seconds per test in Fast mode
- 3 test modes without changing column or reagents
- 20 samples continuous auto loader
- 5 µL whole blood sample
What is the SD Biosensor ULTRA C20?
The SD Biosensor ULTRA C20 is a fully automated HPLC analyzer that measures HbA1c by ion-exchange high-performance liquid chromatography. It runs a test in 90 seconds in Fast mode, loads 20 samples continuously with cap piercing and a built-in barcode reader, and switches between Fast, Fast Variant and Variant modes without changing the column or reagents, so one system covers routine HbA1c testing and haemoglobin variant profiling.
Key features
Ion-exchange HPLC
Separates haemoglobin fractions for HbA1c, with precision CV below 2%.
Three modes, one set-up
Fast, Fast Variant and Variant modes on the same column and reagents.
Variant profiling
Variant mode reports HbA2, HbD, HbC, HbS and HbE alongside HbA1c and HbF.
Walk-away loading
20-sample continuous auto loader with primary tube sampling and cap piercing.
Barcode and LIS
Built-in barcode reader with LIS connectivity.
Easy to run
10-inch touchscreen with one-touch operation and inventory management.
How a test runs on the ULTRA C20
- Place capped EDTA tubes in the 20-sample auto loader; more can be added while it runs.
- The analyzer reads each barcode, pierces the cap and samples 5 µL of whole blood.
- Haemoglobin fractions are separated on the ion-exchange column in the mode you selected.
- Results and the chromatogram appear on screen and can be sent to the LIS.
Specifications
| Specification | SD Biosensor ULTRA C20 |
|---|---|
| Method | Ion-exchange HPLC |
| Parameters | HbA0, HbA1a, HbA1b, HbA1c, LA1c, HbF, P3, eAG; in Variant mode also HbA2, HbD, HbC, HbS and HbE |
| Sample type | EDTA whole blood or pre-diluted sample |
| Sample volume | 5 µL whole blood; 500 µL pre-diluted |
| Time per test | Fast 90 seconds; Fast Variant 115 seconds; Variant 150 seconds |
| Auto loader | 20 samples, continuous loading |
| Column capacity | Fast 6,000 tests; Fast Variant 4,000 tests; Variant 3,000 tests (may vary with usage mode) |
| Reagent kit | Eluent A, B and C, haemolysis reagent, filter and paper roll; 300 × 2 tests per pack |
| Linearity | 3 to 18% |
| Precision | CV below 2% |
| Wavelength | 420 nm primary, 600 nm secondary |
| Display | 10-inch LCD touchscreen |
| Working conditions | 15 to 30 °C, 30 to 85% humidity |
| Dimensions (W × D × H) | 378 × 380 × 510 mm |
Download the official SD Biosensor ULTRA C20 brochure (PDF, 3 MB)
Source: SD Biosensor ULTRA C20 brochure.
Who is the ULTRA C20 for?
The ULTRA C20 suits diagnostic laboratories, hospital laboratories and diabetes centres that run HbA1c every day and want haemoglobin variants reported on the same system. Milap has installed it at laboratories in Karnataka.
Compare the three test modes
| Mode | Time per test | Reports | Best for |
|---|---|---|---|
| Fast | 90 seconds | HbA0, HbA1a, HbA1b, HbA1c, LA1c, HbF, P3, eAG | Routine HbA1c |
| Fast Variant | 115 seconds | The same, with a variant window | Routine testing with a variant alert |
| Variant | 150 seconds | The same, plus HbA2, HbD, HbC, HbS and HbE | Haemoglobin variant profiling |
Installation, training and service
Installation
Set-up, calibration and first-run checks by Milap engineers.
Training
Hands-on training for your laboratory staff.
Reagents and columns
ULTRA C20 reagent, control, calibrator and column kits supplied from Bengaluru.
Service
AMC and CMC, with breakdown calls answered during evenings and weekends too.
Related products
Compact FIA analyzer with an HbA1c test.
24-test FIA analyzer.
Related guide
HPLC, immunoassay and point of care compared.
HbA1c by HPLC: how the SD Biosensor ULTRA C20 works
How the SD Biosensor ULTRA C20 measures HbA1c by HPLC: three test modes, 90-second results, haemoglobin variant profiling and who it suits.
Frequently asked questions
90 seconds in Fast mode, 115 seconds in Fast Variant mode and 150 seconds in Variant mode.
Yes. Variant mode reports HbA2, HbD, HbC, HbS and HbE in addition to HbA1c and HbF.
No. All three modes run on the same column and reagents.
20 at a time, with continuous loading while the analyzer runs.
5 µL of EDTA whole blood, sampled directly from the capped primary tube.
Yes. It has a built-in barcode reader and LIS connectivity.
Milap International, based in Bengaluru, is an authorised channel partner and supplies the SD Biosensor ULTRA C20 HPLC analyzer to hospitals, laboratories and clinics across Karnataka, with installation, training and service from the same team.
The price depends on the model, configuration, accessories and service terms you choose. Request a quote with your requirement and a product specialist will reply with a written price within 24 hours.
Get a quote for the SD Biosensor ULTRA C20
Tell us your daily HbA1c samples and whether you need variant testing, and we will send pricing and running costs.
