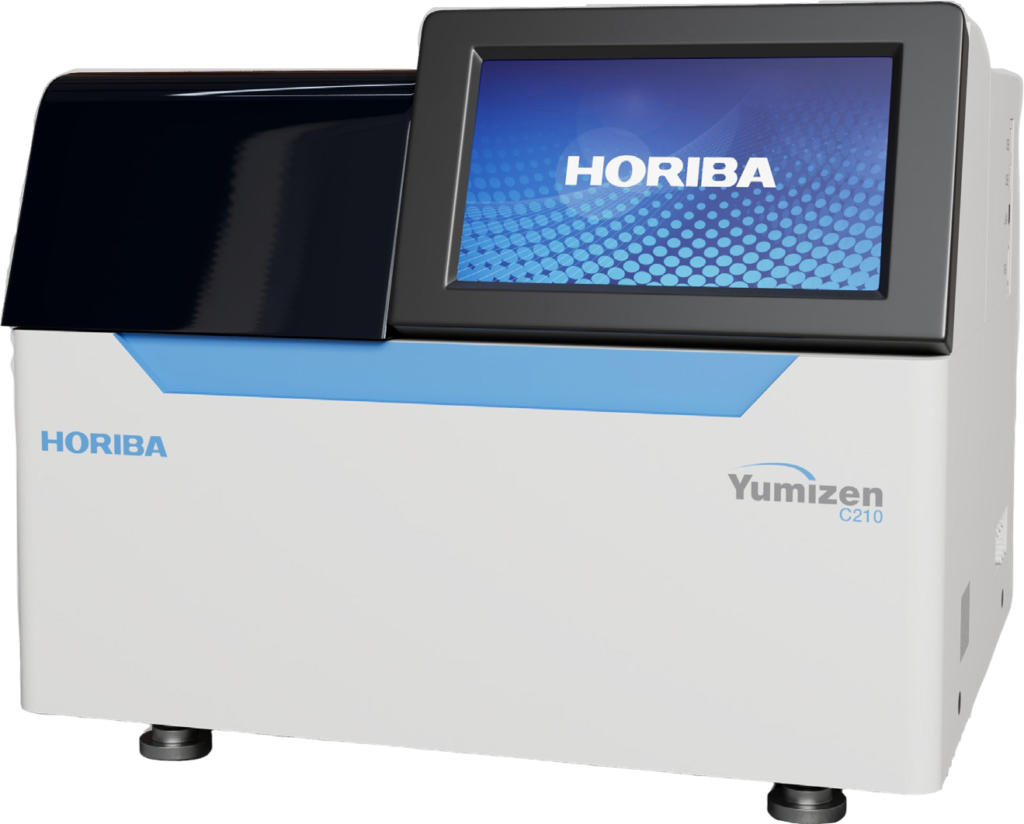

HORIBA Yumizen C210 fully automated chemistry analyzer
A benchtop HORIBA chemistry analyzer with a constant 200 tests per hour, built for small and medium laboratories. Milap International supplies, installs and services the Yumizen C210 as an authorised HORIBA partner.
- 200 tests/hour constant throughput
- 40 reagent positions with cooling
- 40 sample positions with STAT
- 15-inch touchscreen built in
What is the HORIBA Yumizen C210?
The HORIBA Yumizen C210 is a benchtop, fully automated, random-access clinical chemistry analyzer for small and medium laboratories. It runs a constant 200 tests per hour using 81 reusable cuvettes, 40 cooled reagent positions and 40 sample positions, with a built-in 15-inch touchscreen and an 8-step on-board cuvette wash.
Key features
Benchtop design
A compact analyzer that fits on a lab bench.
Cooled reagent tray
40 refrigerated positions, Peltier cooling at 4–15 °C.
Flexible sample loading
Primary tubes and sample cups, continuous loading, STAT in any position.
Barcode-enabled
Reagent and sample positions read by barcode.
8-step cuvette wash
Hot-water washing with carryover below 1%.
Probe protection
Liquid-level detection and collision detection.
How a run works on the Yumizen C210
- Load reagents into the cooled tray and samples into the sample tray.
- Select tests on the 15-inch touchscreen.
- The analyzer pipettes, mixes and reads each reaction automatically.
- Cuvettes are washed on board and reused.
Specifications
| Specification | HORIBA Yumizen C210 |
|---|---|
| Analyzer type | Fully automated, random-access benchtop chemistry analyzer |
| Throughput | 200 tests/hour constant |
| Methods | End-point, two-point, kinetic |
| Principles | Photometry, turbidimetry; potentiometry optional |
| Reagent positions | 40, with cooling |
| Sample positions | 40 |
| Sample volume | 2–45 µL |
| Reaction cuvettes | 81 reusable cuvettes, 5 mm optical path |
| Light source | Halogen lamp with fibre optics |
| Wavelengths | 340, 405, 450, 510, 546, 578, 620, 670 nm |
| Display | 15-inch touchscreen |
| Water consumption | About 4 L/hour |
| Power | 110/220 V AC, 50–60 Hz; max 250 W |
| Dimensions | 800 × 660 × 646 mm |
| Weight | 101 kg |
Download the official HORIBA Yumizen C210 brochure (PDF, 4.1 MB)
Source: HORIBA Yumizen C210 brochure, HORIBA India.
Who is the Yumizen C210 for?
The Yumizen C210 suits small and medium laboratories, clinics and hospital labs that want full automation for routine chemistry without giving up floor space.
Compare chemistry analyzers
| Analyzer | Type | Throughput | Best for |
|---|---|---|---|
| HORIBA Yumizen CA40 | Semi-automated, chemistry + PT/APTT | Manual | Small labs and clinics |
| HORIBA Yumizen C210 | Fully automated benchtop | 200 tests/hour | Small and medium labs |
| BS-240 PRO | Fully automated benchtop | Up to 360 tests/hour | Small and mid-sized labs |
| BS-430 | Fully automated floor-standing | Up to 626 tests/hour with ISE | Mid-sized hospital labs |
| HORIBA Yumizen C600 | Fully automated floor-standing | Up to 600 tests/hour with ISE | Busy hospital and reference labs |
Installation, training and service
Installation and commissioning
Site checks, set-up, calibration and first-run verification by Milap engineers.
Application training
Hands-on training for technicians on daily runs, QC and maintenance.
Reagents and controls
Genuine HORIBA reagents and controls supplied from Bengaluru.
AMC, CMC and breakdown support
Preventive maintenance plans, with breakdown calls answered during evenings and weekends.
Related products
Floor-standing chemistry with ISE.
Semi-automated chemistry and coagulation.
Fully automated benchtop chemistry.
CBC and CRP from one sample.
Related guide
Semi-automated vs fully automated biochemistry analyzer
When automation pays.
Frequently asked questions
A constant 200 tests per hour.
Yes. It measures 800 × 660 × 646 mm and weighs 101 kg, so it sits on a sturdy lab bench.
40 cooled reagent positions and 40 sample positions, with continuous sample loading.
Yes. STAT samples, controls and calibrators can be placed in any position.
About 4 litres per hour.
Yes. Milap engineers install and commission the analyzer, train your staff, supply genuine reagents and controls, and offer preventive maintenance, AMC or CMC with breakdown support from Bengaluru.
Milap International, based in Bengaluru, is an authorised channel partner and supplies the HORIBA Yumizen C210 fully automated chemistry analyzer to hospitals, laboratories and clinics across Karnataka, with installation, training and service from the same team.
The price depends on the model, configuration, accessories and service terms you choose. Request a quote with your requirement and a product specialist will reply with a written price within 24 hours.
Get a quote for the HORIBA Yumizen C210
Tell us your daily test volume and test menu, and we will send pricing and a service plan.
